[skaffold] Skaffold , kustomize with Spring Boot

seulseul 2022. 12. 27. 02:48

Skaffold는 애플리케이션 구축, 푸시 및 배포를 위한 워크플로를 처리하고 CI/CD 파이프라인 생성을 위한 빌딩 블록을 제공한다.

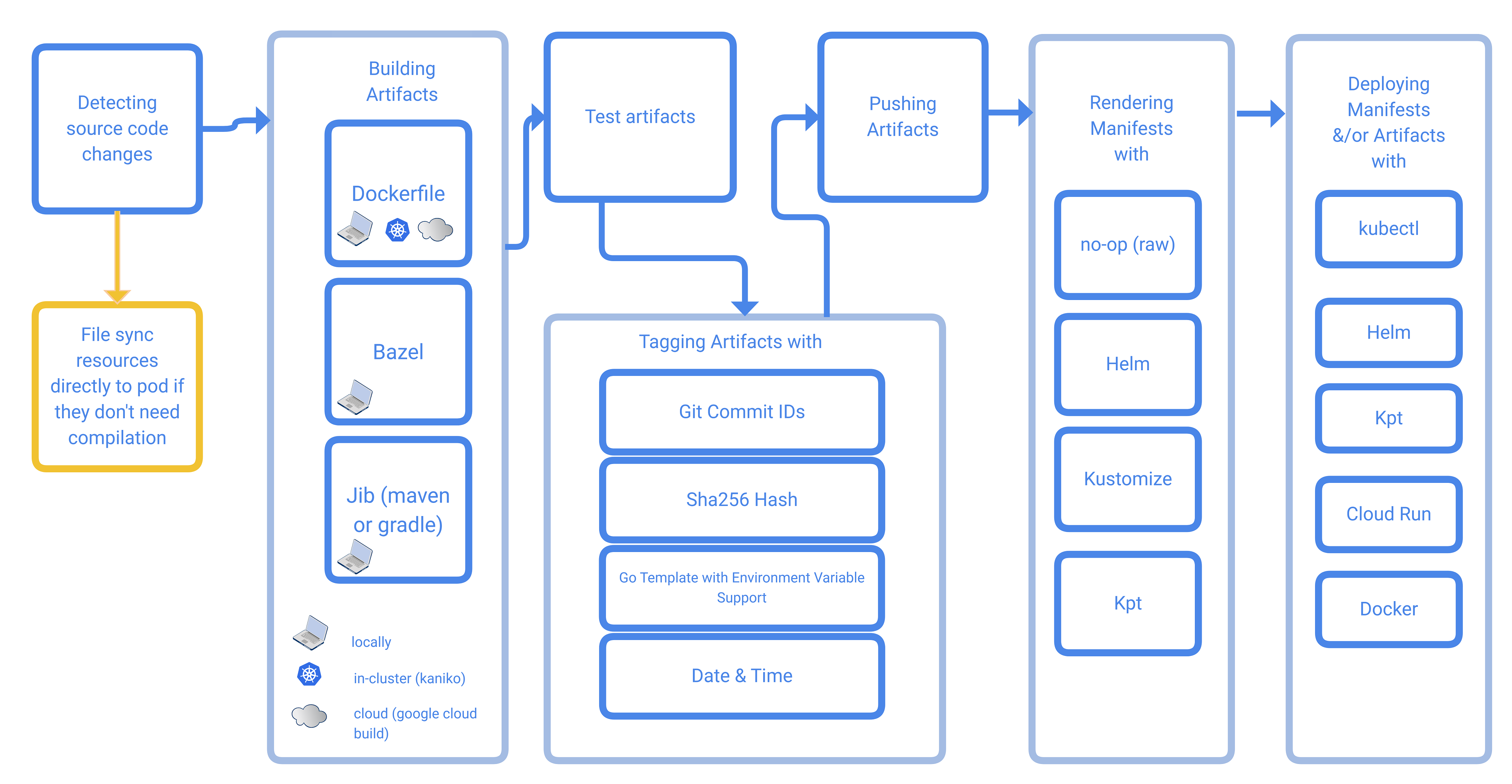

Google 에서 개발했으며 아래와 같은 파이프라인으로 동작한다.

1. install

1.1.skaffold 설치

curl -Lo skaffold https://storage.googleapis.com/skaffold/releases/v2.0.0/skaffold-linux-amd64
sudo install skaffold /usr/local/bin/

1.2. kustomize 설치

kustomize CLI 미설치시 skaffold deploy 작업중 error 발생함

curl -s "https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh"| bash
sudo install kustomize /usr/local/bin

2. plugin 추가

skaffold 에서 jib step 을 실행하기 때문에 build.gradle 또는 pom.xml 에 jib 플러그인을 추가해줘야한다.

2.1. build.gradle 예시 (gradle)

plugins {


	id 'com.google.cloud.tools.jib' version '3.3.1'


}

2.2. pom.xml 예시 (maven)

<build>
	<plugins>

			<!--  생략 -->

                  <plugin>
                    <groupId>com.google.cloud.tools</groupId>
                    <artifactId>jib-maven-plugin</artifactId>
                    <version>3.0.0</version>
                  </plugin>

	</plugins>
</build>

3. 프로젝트 구조

위 이미지는 skaffold 와 resource 가 프로젝트에 같이 있는 경우이다.
1. skaffold.yaml 은 프로젝트 ROOT 위치에 있다. (필수)
2. kustomization.yaml , 각종 resource yaml 은 k8s/base Directory 위치에 있다.
(사용자의 커스텀일 뿐 정해진 규칙은 아님)

4. skaffold.yml

apiVersion: skaffold/v2beta18
kind: Config
profiles:
  - name: dev                 # skaffold 실행시 -p로 정의된 profile
    build:
      local:
        push: true # false는 로컬 테스트
      artifacts:
        - image: jei0486/demo-fe # on dev server (docker hub에 push하고 실행)
          # - image: demo-fe   # local(로컬/push없이 실행만)
          jib:
            args:
              - -DskipTests
              - "-Djib.container.environment=SPRING_PROFILES_ACTIVE=dev"  # jib 플러그인을 통해 dev profile에 대해 수행
            fromImage: docker.io/library/openjdk:11.0.11-jre         # 실행을 위한 runtime image
    deploy:
      kustomize:
        paths:
        - k8s/base

#    deploy:
#      kubectl:
#        manifests:
#          - k8s/demo-fe-cm.yaml
#          - k8s/demo-fe.yaml
#          - k8s/demo-fe-ingress.yaml

Skaffold with kustomize ( Skaffold 공식홈페이지 URL )
- https://skaffold.dev/docs/pipeline-stages/renderers/kustomize/

deploy.kustomize.paths 에 kustomization.yaml 이 위치한 path 를 기입해준다.
deploy 방식은 kustomize 뿐 아니라 kubectl , helm , google cloud run 등이 있다.

만약 deploy 방법으로, kustomize 를 사용하지 않고 kubectl 을 사용할 경우 kustomize 를 설치하지 않아도 된다.
주석처리된 deploy.kubectl 부분과 같이 작성하면된다.

skaffold 공홈 deploy 부분 참고
- https://skaffold.dev/docs/pipeline-stages/deployers/

Deploy [UPDATED]

Easy and Repeatable Container & Kubernetes Development

skaffold.dev

5. kustomization

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - demo-fe.yaml
  - demo-fe-cm.yaml
  - demo-fe-ingress.yaml

images:
  - name: jei0486/demo-fe
    newTag: v2

Kustomize ? Declarative Management of Kubernetes Objects Using Kustomize
Kustomize는 kustomization 파일을 통해 쿠버네티스 오브젝트를 사용자가 원하는 대로 변경하는(customize) 독립형 도구이다.

6. skaffold 명령어

6.1. skaffold build

# skaffold build
skaffold build -p dev -t v0.2

build : build 후 docker 파일을 registry 에 업로드만 한다.

6.2. skaffold dev

# skaffold dev
skaffold dev -p dev -t v0.2

dev : 실행함과 동시에 터미널에 로그가 뜨게된다.
- Ctrl + C 를 누르면 deployment 및 service 와 같은 모든 resources 가 삭제된다.

6.2.1. 실행 터미널

04:28:17 ubuntu@DESKTOP demo-api ±|main ✗|→ TAG=v2 skaffold dev -p dev --cache-artifacts=false
Listing files to watch...
 - docker.io/jei0486/demo-api
Generating tags...
 - docker.io/jei0486/demo-api -> docker.io/jei0486/demo-api:v2
Starting build...
Found [k3d-k3s-default] context, using local docker daemon.
Building [docker.io/jei0486/demo-api]...
Target platforms: [linux/amd64]
> Task :_skaffoldFailIfJibOutOfDate
> Task :compileJava UP-TO-DATE
> Task :processResources UP-TO-DATE
> Task :classes UP-TO-DATE

> Task :jib

Containerizing application to jei0486/demo-api:v2...
Base image 'openjdk:11.0.11-jre' does not use a specific image digest - build may not be reproducible
Getting manifest for base image openjdk:11.0.11-jre...
Building dependencies layer...
Building resources layer...
Building classes layer...
Building jvm arg files layer...
Using credentials from Docker config (/home/ubuntu/.docker/config.json) for jei0486/demo-api:v2
The base image requires auth. Trying again for openjdk:11.0.11-jre...
Using credentials from Docker config (/home/ubuntu/.docker/config.json) for openjdk:11.0.11-jre
Using base image with digest: sha256:50c85f8bc95c66f3eb1d8fd79cbf34e9cd509fe4cc584253e7566a832877b840

Container entrypoint set to [java, -cp, @/app/jib-classpath-file, com.demo.api.DemoApiApplication]

Built and pushed image as jei0486/demo-api:v2

BUILD SUCCESSFUL in 13s
4 actionable tasks: 2 executed, 2 up-to-date
Build [docker.io/jei0486/demo-api] succeeded
Tags used in deployment:
 - docker.io/jei0486/demo-api -> docker.io/jei0486/demo-api:v2@sha256:c2a25e0da412d05de50c1966a5ede6d68743a727ea17465a50e93ac218cbe2a0
Starting deploy...
Loading images into k3d cluster nodes...
Images loaded in 65ns
 - configmap/demo-api-configmap unchanged
 - service/demo-api-svc configured
 - deployment.apps/demo-api configured
Waiting for deployments to stabilize...
 - api:deployment/demo-api: creating container demo-api
    - api:pod/demo-api-6dc4db69d-gs94f: creating container demo-api
 - api:deployment/demo-api is ready.
Deployments stabilized in 5.063 seconds
Press Ctrl+C to exit
[demo-api] 07:28:48.541 [Thread-0] DEBUG org.springframework.boot.devtools.restart.classloader.RestartClassLoader - Created RestartClassLoader org.springframework.boot.devtools.restart.classloader.RestartClassLoader@708a3bc0
[demo-api] 07:28:48.407 [INFO ] [SpringApplicationShutdownHook] o.s.o.j.LocalContainerEntityManagerFactoryBean - Closing JPA EntityManagerFactory for persistence unit 'default'
[demo-api] 07:28:48.409 [INFO ] [SpringApplicationShutdownHook] com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Shutdown initiated...
[demo-api] 07:28:48.413 [INFO ] [SpringApplicationShutdownHook] com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Shutdown completed.
[demo-api]
[demo-api]   .   ____          _            __ _ _
[demo-api]  /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
[demo-api] ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
[demo-api]  \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
[demo-api]   '  |____| .__|_| |_|_| |_\__, | / / / /
[demo-api]  =========|_|==============|___/=/_/_/_/
[demo-api]  :: Spring Boot ::               (v2.6.13)
[demo-api]
[demo-api] 07:28:48.829 [INFO ] [restartedMain] com.demo.api.DemoApiApplication - Starting DemoApiApplication using Java 11.0.11 on demo-api-6dc4db69d-gs94f with PID 1 (/app/classes started by root in /)
[demo-api] 07:28:48.830 [INFO ] [restartedMain] com.demo.api.DemoApiApplication - The following 1 profile is active: "dev"
[demo-api] 07:28:48.866 [INFO ] [restartedMain] o.s.b.d.e.DevToolsPropertyDefaultsPostProcessor - Devtools property defaults active! Set 'spring.devtools.add-properties' to 'false' to disable
[demo-api] 07:28:48.866 [INFO ] [restartedMain] o.s.b.d.e.DevToolsPropertyDefaultsPostProcessor - For additional web related logging consider setting the 'logging.level.web' property to 'DEBUG'
Watching for changes...
[demo-api] 07:28:49.201 [INFO ] [restartedMain] o.s.d.r.c.RepositoryConfigurationDelegate - Bootstrapping Spring Data JPA repositories in DEFAULT mode.
[demo-api] 07:28:49.229 [INFO ] [restartedMain] o.s.d.r.c.RepositoryConfigurationDelegate - Finished Spring Data repository scanning in 22 ms. Found 1 JPA repository interfaces.
[demo-api] rpc error: code = NotFound desc = an error occurred when try to find container "530a9ce496b8a0026b77bc0f29d24156e15065595e4b9481a8660e18edea3916": not found[demo-api] 07:28:49.759 [INFO ] [restartedMain] o.s.b.w.e.tomcat.TomcatWebServer - Tomcat initialized with port(s): 8088 (http)
[demo-api] 07:28:49.767 [INFO ] [restartedMain] o.a.catalina.core.StandardService - Starting service [Tomcat]
[demo-api] 07:28:49.767 [INFO ] [restartedMain] o.a.catalina.core.StandardEngine - Starting Servlet engine: [Apache Tomcat/9.0.68]
[demo-api] 07:28:49.816 [INFO ] [restartedMain] o.a.c.c.C.[Tomcat].[localhost].[/] - Initializing Spring embedded WebApplicationContext
[demo-api] 07:28:49.816 [INFO ] [restartedMain] o.s.b.w.s.c.ServletWebServerApplicationContext - Root WebApplicationContext: initialization completed in 949 ms
[demo-api] 07:28:50.093 [INFO ] [restartedMain] o.h.jpa.internal.util.LogHelper - HHH000204: Processing PersistenceUnitInfo [name: default]
[demo-api] 07:28:50.118 [INFO ] [restartedMain] org.hibernate.Version - HHH000412: Hibernate ORM core version 5.6.12.Final
[demo-api] 07:28:50.262 [INFO ] [restartedMain] o.h.annotations.common.Version - HCANN000001: Hibernate Commons Annotations {5.1.2.Final}
[demo-api] 07:28:50.314 [INFO ] [restartedMain] com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Starting...
[demo-api] 07:28:50.362 [INFO ] [restartedMain] com.zaxxer.hikari.HikariDataSource - HikariPool-1 - Start completed.
[demo-api] 07:28:50.373 [INFO ] [restartedMain] org.hibernate.dialect.Dialect - HHH000400: Using dialect: org.hibernate.dialect.MySQL5InnoDBDialect
[demo-api] 07:28:50.659 [INFO ] [restartedMain] o.h.e.t.j.p.i.JtaPlatformInitiator - HHH000490: Using JtaPlatform implementation: [org.hibernate.engine.transaction.jta.platform.internal.NoJtaPlatform]
[demo-api] 07:28:50.664 [INFO ] [restartedMain] o.s.o.j.LocalContainerEntityManagerFactoryBean - Initialized JPA EntityManagerFactory for persistence unit 'default'
[demo-api] 07:28:50.849 [WARN ] [restartedMain] o.s.b.a.o.j.JpaBaseConfiguration$JpaWebConfiguration - spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning
[demo-api] 07:28:51.088 [INFO ] [restartedMain] o.s.b.d.a.OptionalLiveReloadServer - LiveReload server is running on port 35729
[demo-api] 07:28:51.092 [INFO ] [restartedMain] o.s.b.a.e.web.EndpointLinksResolver - Exposing 1 endpoint(s) beneath base path '/actuator'
[demo-api] 07:28:51.119 [INFO ] [restartedMain] o.s.b.w.e.tomcat.TomcatWebServer - Tomcat started on port(s): 8088 (http) with context path ''
[demo-api] 07:28:51.129 [INFO ] [restartedMain] com.demo.api.DemoApiApplication - Started DemoApiApplication in 2.576 seconds (JVM running for 2.88)

6.3. skaffold run

# skaffold run
skaffold run -p dev -t v0.2

한 번 빌드 및 배포한다.

Skafflod CLI URL 에서 다양한 Skaffold CLI 와 Option 을 확인할 수 있다.
